DVS ELECTRO-MECHANICAL VOLTAGE STABILIZERS
Single-phase
15-135kVA

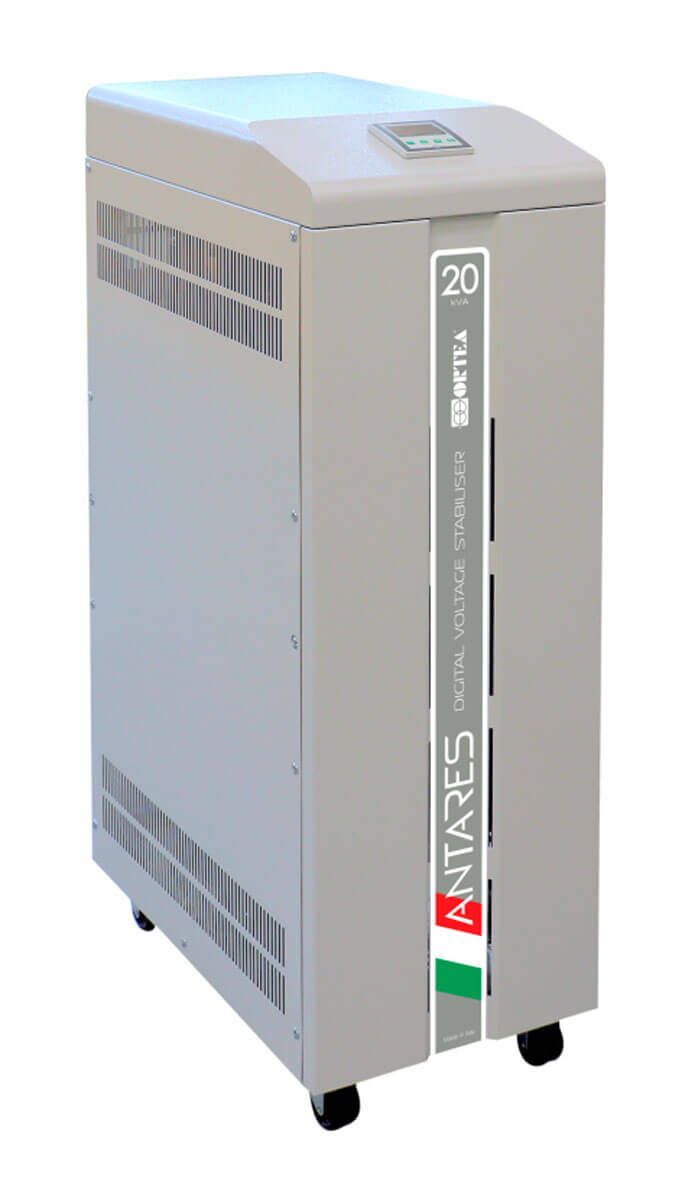

Antares
Standard Features
| Selectable output voltage (dip-switch) | 220-230-240V |
| Output voltage accuracy | ± 0,5% |
| Frequency | 50Hz ± 5% or 60Hz ± 5% |
| Admitted load variation | Up to 100% |
| Cooling | Natural ventilation (aided with fans) |
| Ambient temperature | ‘ -25/ +45ႚ C |
| Storage temperature | -25/ +60ႚ C |
| Max relative humidity | 95% (non condensing) |
| Admitted overload | 200% 2 min. |
| Harmonic distortion | None introduced |
| Colour | RAL 7035 |
| Protection degree | IP 21 |
| Instrumentation | Output digital voltmetre |
| Installation | Indoor |
| Overvoltage protection | Class II output surge arrestor |
