Gas-inuslated switchgear for secondary distribution systems

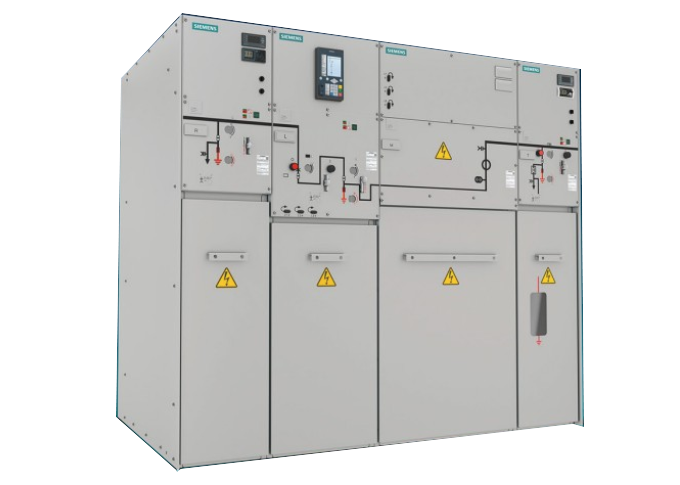

Air-insulated medium-voltage switchergear SIMOSEC
Download Pdf

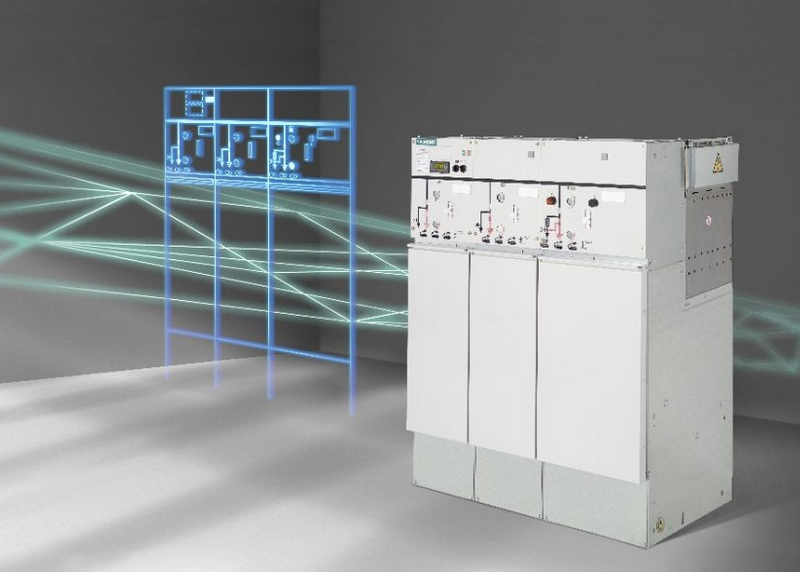

Gas-insulated medium-voltage switchergear 8DJH- The one that fits all
- Up to 17.5 kV, 25 KA, 630 A busbar, 630 A feeder
- Up to 24 kV, 20 KA, 630 A busbar, 630 A feeder
- Metal-enclosed
- Gas-insulated
- Hermetically enclosed
- Factory-assembled, routine-tested according IEC 62271-200
- Type-tested according IEC 62271-200
Customer’s Benefit:
- Security of Operation, Reliability
- Maintenance-free Design
- Personal Safety
- Environmental Independence
- Compactness
- Economy, Ecology
|

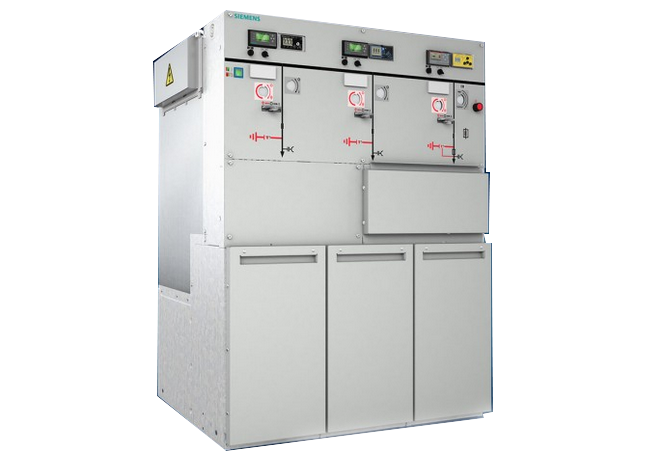

Gas-insulated medium-voltage switchgear 8DJH 12- blue GIS
Description of 8DJH 12
- Ring-main-unit up to 12 kV, 21 kA and 630 A
- Gas-insulated
- Hermetically enclosed
- Type-tested switchgear according to IEC 62271-1/-100/-102/-103/-200
Clean Air
- F-gas-free
- Global warming potential <1
- Highly stable
- Non-toxic
- Non-flammable
- For every application temperature
Customer’s Benefit:
- Familiar operating concept for switchgear
- Environmental independence
- Compact design
- Maintenance-free design
- Personal safety
- Security of operation, reliability
- Economy, ecology
|

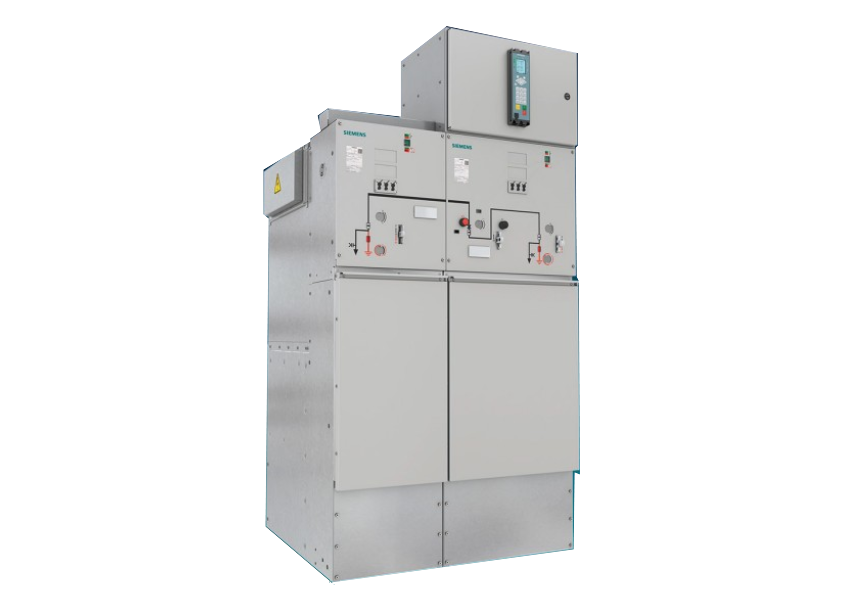

Gas-insulated medium-voltage switchgear 8DJH 24- blue GIS
Description of 8DJH 24
- Ring-main-unit up to 12 kV, 21 kA and 630 A
- Gas-insulated
- Hermetically enclosed
- Type-tested switchgear according to IEC 62271-1/-100/-102/-103/-200
Clean Air
- F-gas-free
- Global warming potential <1
- Highly stable
- Non-toxic
- Non-flammable
- For every application temperature
Customer’s Benefit:
- Familiar operating concept for switchgear
- Environmental independence
- Compact design
- Maintenance-free design
- Personal safety
- Security of operation, reliability
- Economy, ecology
|

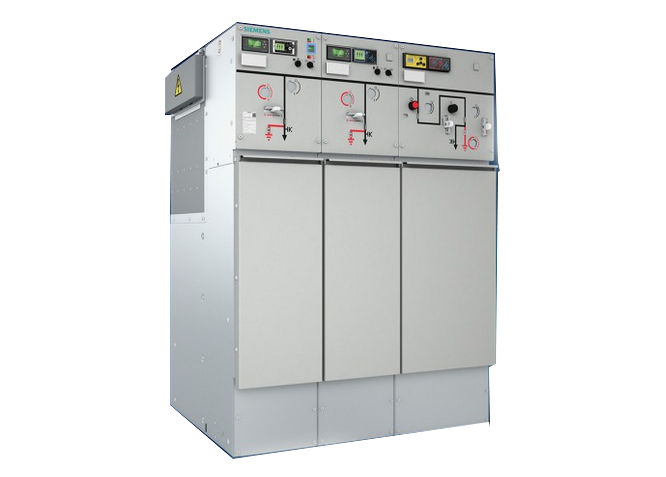

Gas-insulated medium-voltage switcjhgear 8DJH 36 – Compact and versatile
Download Pdf

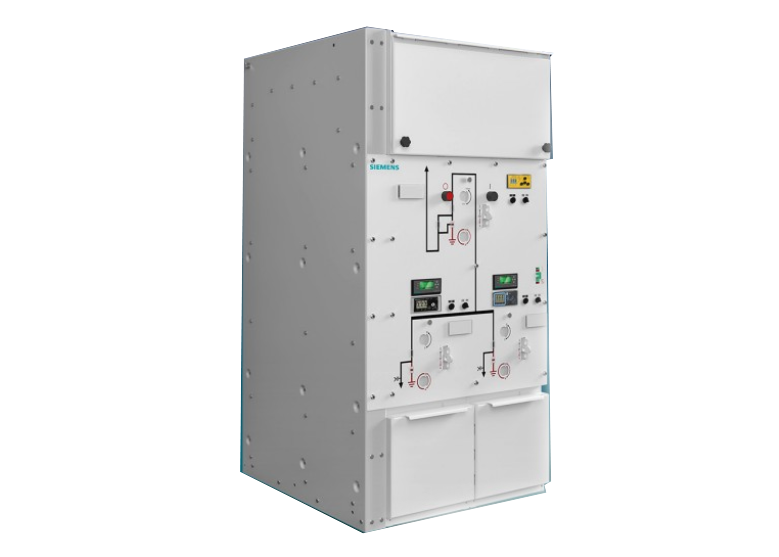

Gas-insulated medium-voltage switchgear 8DJH Compact- Maximun Functionality on Minimum Space
Download Pdf
